708TX SWITCH

Red Lion

Ethernet Switches, N-Tron 700 Series

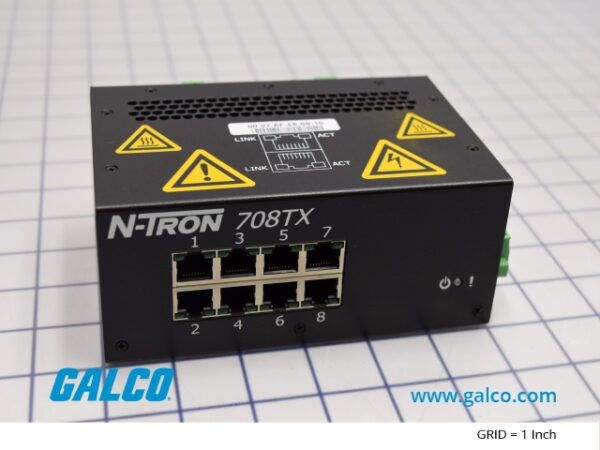

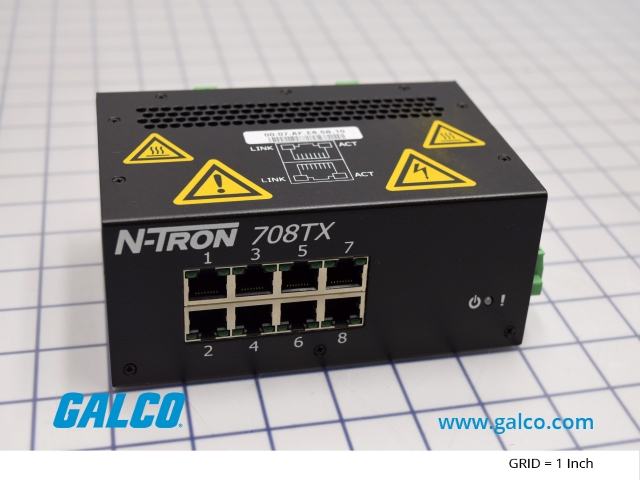

Item# 708TX - Managed switch, 8-port 10/100BaseTX copper

N-Tron 700 Series Information
For applications in extreme environments, check out Red Lion's N‑Tron® series 700 managed industrial Ethernet switches. Our 700 managed industrial Ethernet switches support SNMP, web management, Fast Ethernet and N‑View™ monitoring technology. Housed in rugged enclosures, the 700 managed Ethernet switches feature extended shock and vibration specifications, wide operating temperature ratings and best‑in‑class ring technology, providing 30 ms healing times.

Connectivity:
The 700 managed industrial Ethernet switches feature between eight and 16 ports, offering 100Base port speeds. These managed switches provide a combination of copper and fiber ports for maximum flexibility. Available in waterproof IP67 protected enclosures with M12 style connectors, the 700 series switches provide extreme reliability in high moisture/vibration environments.

Performance:
The N‑Tron 700 line of managed industrial Ethernet switches provide uncompromising performance in harsh environments including features like N‑Ring™, VLAN, Quality of Service (QoS), port mirroring, IGMP and SNMP. These network management features provide best‑in‑class visibility and uptime performance.

Environmental:
700 Managed industrial Ethernet switches are housed in metal enclosures, and feature a ‑40° to +85°C operating temperature. With UL Class I, Div. 2 listing, CE, EN50155 and ABS certifications, these switches are built to last in the most demanding environments.

Monitoring:
The ‑N models provide network performance monitoring using N‑View monitoring technology, which provides 47 different status points on switch and port conditions and displays that information on a networked computer.

Security:
The 700 managed industrial Ethernet switches provide a high level of security utilizing port‑based MAC address filtering and SNMPv3 communication protocol to ensure the safest connections.
Specifications
Item Number: 708TX
Brand:Red Lion
Item Category:Ethernet Switches
Series:N-Tron 700
Network Configuration:Managed
Total Number of Ports:8
Primary Port Style:RJ-45
Primary Port Standard:10Base-T;100Base-TX
Primary Port Qty.:8
Supply Voltage:10~30 VDC
Power Over Ethernet(PoE):No
MAC Addresses:8,000
IP Rating:
IP40
Enclosure Composition:Metallic
Mounting:DIN Rail
Operating Temperature:-40 to 185 Degrees F
Approvals:cULus;CE
RoHS:Yes
H x W x D:6.4 in x 4.3 in x 2.3 in
Net Weight:1 lb 10 oz
Gross Weight:2 lb 4 oz
