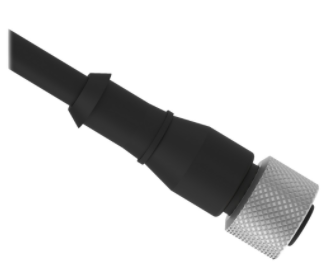

CONECTOR MQDC2S-815

Number of Contacts 8
Number of Connectors 1
Cable Jacket Material PVC
Cable Jacket Color Black
Connector Body Material/Color PUR Black
Outside Cable Diameter (mm) 5.6
Cordset Length (m) 4.57
Trunk Length (m) No Trunk
Shield/No Shield Shield
Shield Type Open
Coupling Material/Color Nickel Plated Brass
Maximum Temp. (°C) 105
Current Rating (A) 2.0
Minimum Temp. (°C) -40
Voltage Rating (V) 75 V ac/dc
IP Rating IP67
Primary Connector Type EURO
Primary Coupling Method M12 Single Key
Primary Gender Female
Primary Orientation Straight
Primary Number of Conductors 8
Primary AWG 24
Secondary Connector Type Flying Leads
Feature: Hazardous Area No
Oil/Grease Resistant No
