IFMR0066
Signal Conditioner, Model IFMR, Current, Voltage Input, Current Output, 85 to 250 Vac

RED LION CONTROLS IFMR0066

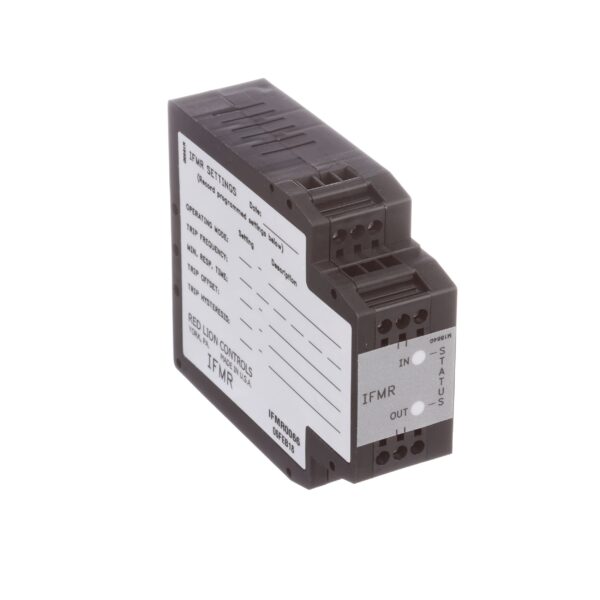

Add to compareThe actual product may differ from image shown
RED LION CONTROLS
Manufacturer: RED LION CONTROLS
Manufacturer Part No: IFMR0066
Newark Part No.: 84K7455
Technical Datasheet: IFMR0066 Datasheet
See all Technical Docs
Product Information

Signal Conditioner Input: Current, Voltage
Signal Conditioner Output: Current
No. of Output Channels: -
Accuracy %: 0.1%
No. of Channels: -
Supply Voltage Min: 9VDC
Supply Voltage Max: 32VDC
Operating Temperature Min: 0°C
Operating Temperature Max: 50°C
Product Range: -
Find similar productsChoose and modify the attributes above to find similar products.
Technical Docs (4)
Technical Data Sheet EN
135/1177
133/1973
134/1181
Product Overview
The IFMR0066 is an AC powered Speed Switch accepts frequency inputs and controls a single relay based on the value of the input frequency. The relay can be set to trip based on any input value from 0.1Hz to 25kHz.Two separate input connections are available for external push-buttons and override to the relay trip detection. The IFMR signal conditioners can be easily configured using a seven position DIP switch, rotary switch and/or push-button. The input circuitry is also DIP switch selectable for a variety of sources and operates in one of six user selectable output modes. LED lights on the face of the unit are illuminated during normal operation to display the input and output status of the IFMA. These LEDs are also used to provide visual feedback during device configuration. The unit is equipped with a universal mounting foot and can be mounted to either a top hat (EN 50 022) or a G profile (EN 50 035 - G32) DIN rail.
85 to 250VAC Input power
Hysteresis and offset functions available
Relay latching, alarm override and alarm reset functions
Applications
Signal Processing
Signal Conditioner Input: Current, Voltage
Signal Conditioner Output: Current
No. of Output Channels: -
Accuracy %: 0.1%
No. of Channels: -
Supply Voltage Min: 9VDC
Supply Voltage Max: 32VDC
Operating Temperature Min: 0°C
Operating Temperature Max: 50°C
Product Range: -
